360° surround-view camera calibration for Seattle and Tacoma Body Shops

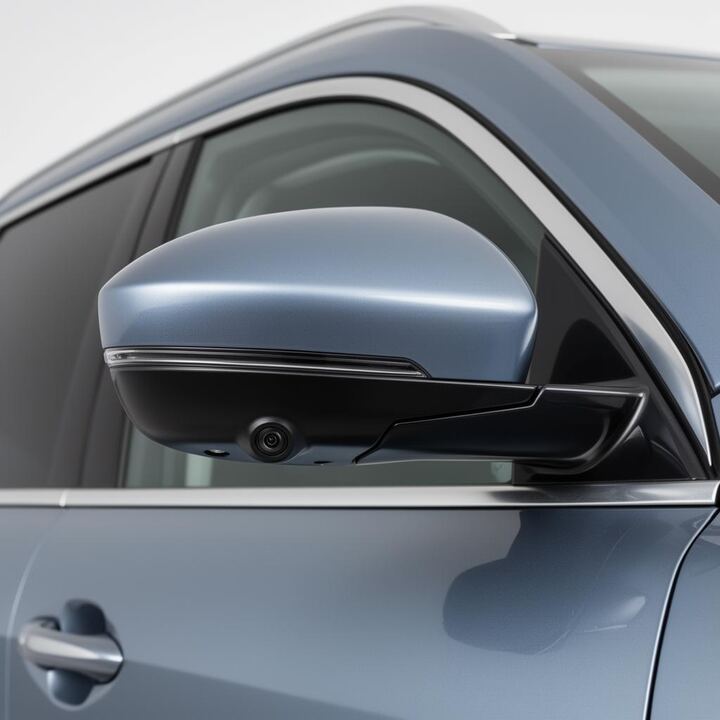

Surround-view systems use multiple cameras in the mirrors, grille, and tailgate to build a 360-degree image, and they must be recalibrated when any of those cameras or panels are disturbed. Focal ADAS calibrates the full system on-site with manufacturer targets and includes complete documentation.

Last updated: May 2026

360° Cameras · aligned to OEM spec

360° surround-view camera calibration

Verified before and after, on-site at your bay

In short

When this calibration is required

Triggers below come from the manufacturer's published procedure for the build. Any one of them is enough to put the line on the file.

After mirror, bumper, grille, or tailgate work affecting a camera
After collision damage near any surround-view camera
After camera replacement
When the OEM procedure for the VIN requires it, which Focal ADAS checks on every job

How Focal ADAS performs it

1
Pre-scan and VIN decode
Full pre-scan plus the build-specific surround-view procedure pulled from the OEM service portal.
2
Pattern layout
OEM target mats are laid around the vehicle at exact offsets from the wheel centers and bumper corners.
3
Per-camera calibration
Front, rear and both side cameras calibrated in the order the OEM procedure specifies, each verified before moving on.
4
Stitch verification
Live bird's-eye view checked on the head unit for seam alignment, scale, and parking-line accuracy.
5
Post-scan and documentation
Clean post-scan, completion record, and setup photos delivered with the invoice.

Setup photo placeholder - swap with on-site image from a real job.

What the shop gets

Pre-repair scan report (all modules)
Post-repair scan report (all modules)
OEM calibration procedure reference (build-specific)
Calibration completion record from the scan tool
Setup photos of targets / drive evidence
Itemized invoice - pass-through ready

This service is priced per system. Multi-system jobs are quoted by VIN, and every job includes the full documentation package.

What the shop provides

Mobile calibration runs on the shop's own floor. Most repair facilities already have everything a procedure needs.

A stretch of clear, reasonably level floor space around the vehicle. The exact footprint depends on the OEM procedure for that vehicle, so it is confirmed when the appointment is booked.
Adequate, even lighting so targets and sensors can be positioned and read correctly.
For dynamic calibrations, suitable road access near the shop so the required drive can be completed.
The vehicle staged and repair-complete for the systems being calibrated.

Focal ADAS brings the calibration targets, fixtures and diagnostic tooling for the identified procedure.

Frequently asked questions

Why do all four cameras need to be calibrated if only one was replaced?+

The system stitches as a set. Recalibrating one without rebaselining the others usually leaves visible seams. The OEM procedure calibrates the array, not the individual camera.

How much floor space does the pattern layout need?+

Roughly one vehicle-length of clear floor around the car on every side. A standard bay with the next bay clear is plenty.

Will dynamic guidelines still work after calibration?+

Yes - the steering-linked overlays use the same calibrated camera baseline. We verify the overlays track correctly before releasing the vehicle.
